How Much Does a Fiberglass Mold Cost? A Guide to Tooling Budgets

A basic fiberglass mold for a simple flat panel can cost $5,000. A precision multi-cavity closed mold for a structural automotive component can cost $200,000 or more. Both are fiberglass molds. The price difference is not fabricator markup, it is geometry, material, and process complexity doing what they always do to tooling budgets.

This guide breaks down fiberglass mold cost by complexity tier, identifies the specific factors that move a quote from the low end to the high end of any range, and explains what buyers can do to keep tooling budgets under control without sacrificing mold quality. All ranges on this page are based on typical North American market rates as of 2026.

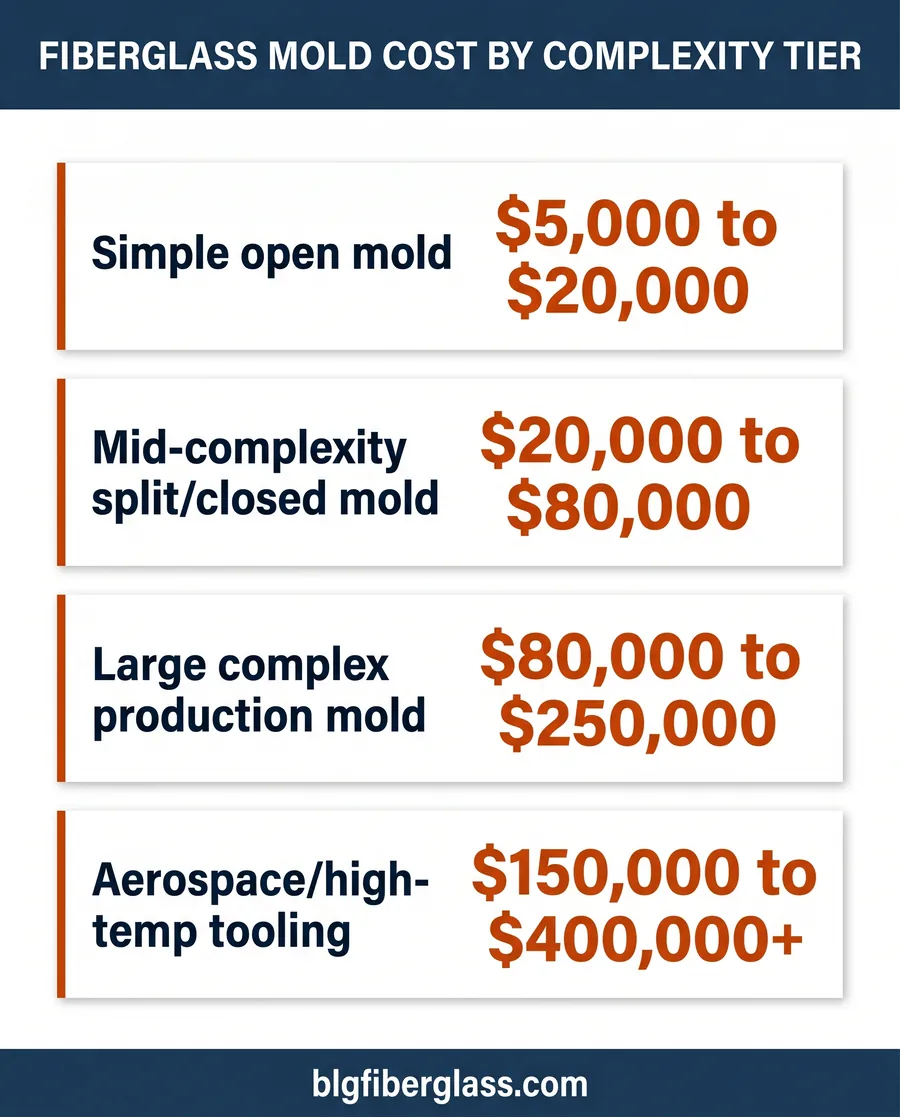

Fiberglass mold costs typically range from $5,000 to $20,000 for simple open molds, $20,000 to $80,000 for mid-complexity closed or split molds, and upwards of $80,000 to $250,000+ for large, high-precision, or multi-cavity production tooling. The final price is primarily driven by geometric complexity, mold life expectations (number of pulls), and the chosen fabrication process.

Why fiberglass mold costs vary so much

Tooling cost is not a linear function of part size. A large but geometrically simple mold can be cheaper than a small mold with complex undercuts, tight tolerances, or specialized surface requirements. The fabricator is pricing labor hours, and labor hours are determined by complexity far more than by raw dimensions.

The second variable most buyers underestimate is the number of production pulls expected from the mold. A prototype mold intended for 5 to 10 parts can be built to a different standard than production tooling expected to yield 500 or 5,000 pulls over its service life. Building production-grade tooling when you only need a handful of prototypes is expensive. Building prototype-grade tooling for production volume is a different kind of expensive when the mold degrades ahead of schedule.

Simple molds: $5,000 to $20,000

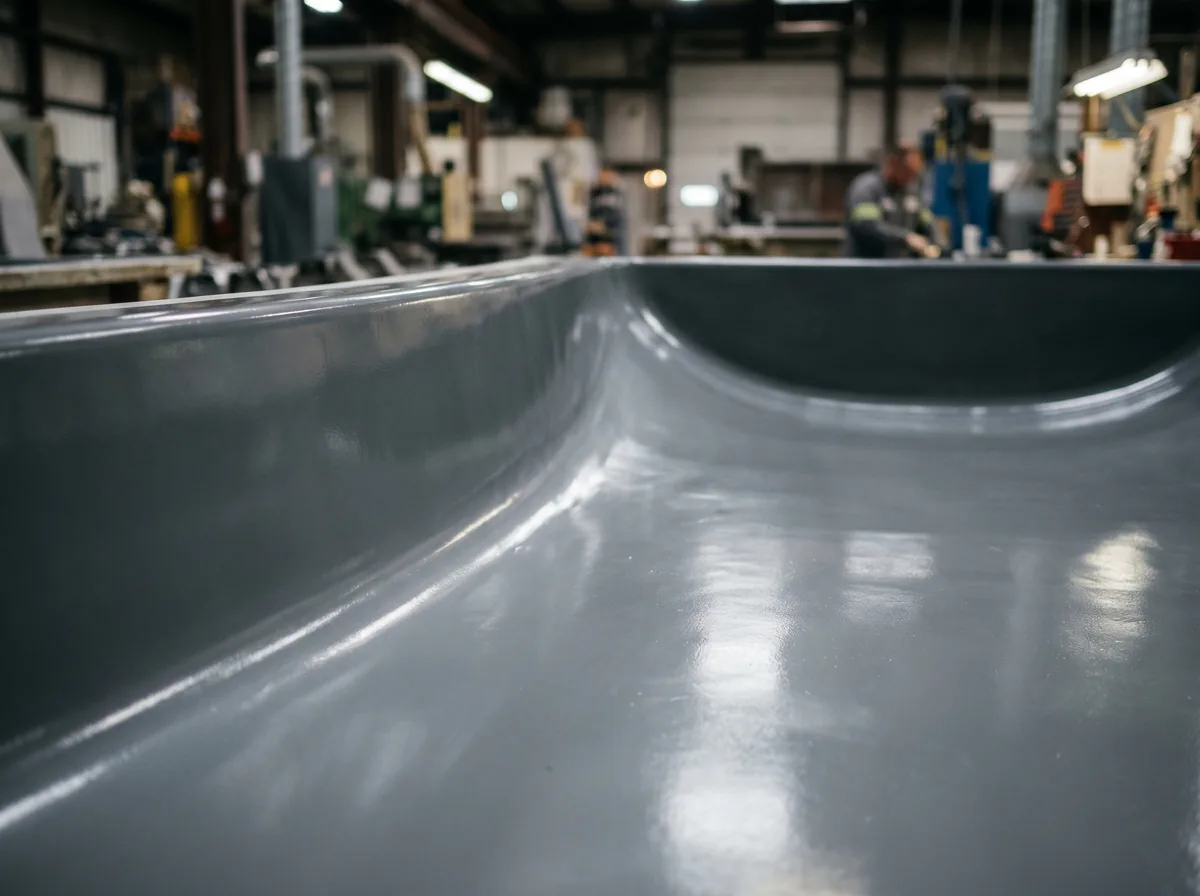

Simple molds cover flat or gently curved single-surface open molds with straightforward draft angles and no undercuts. Typical examples include flat panel molds, basic enclosure lids, shallow trays, and simple housings where the part releases vertically without any draft complications.

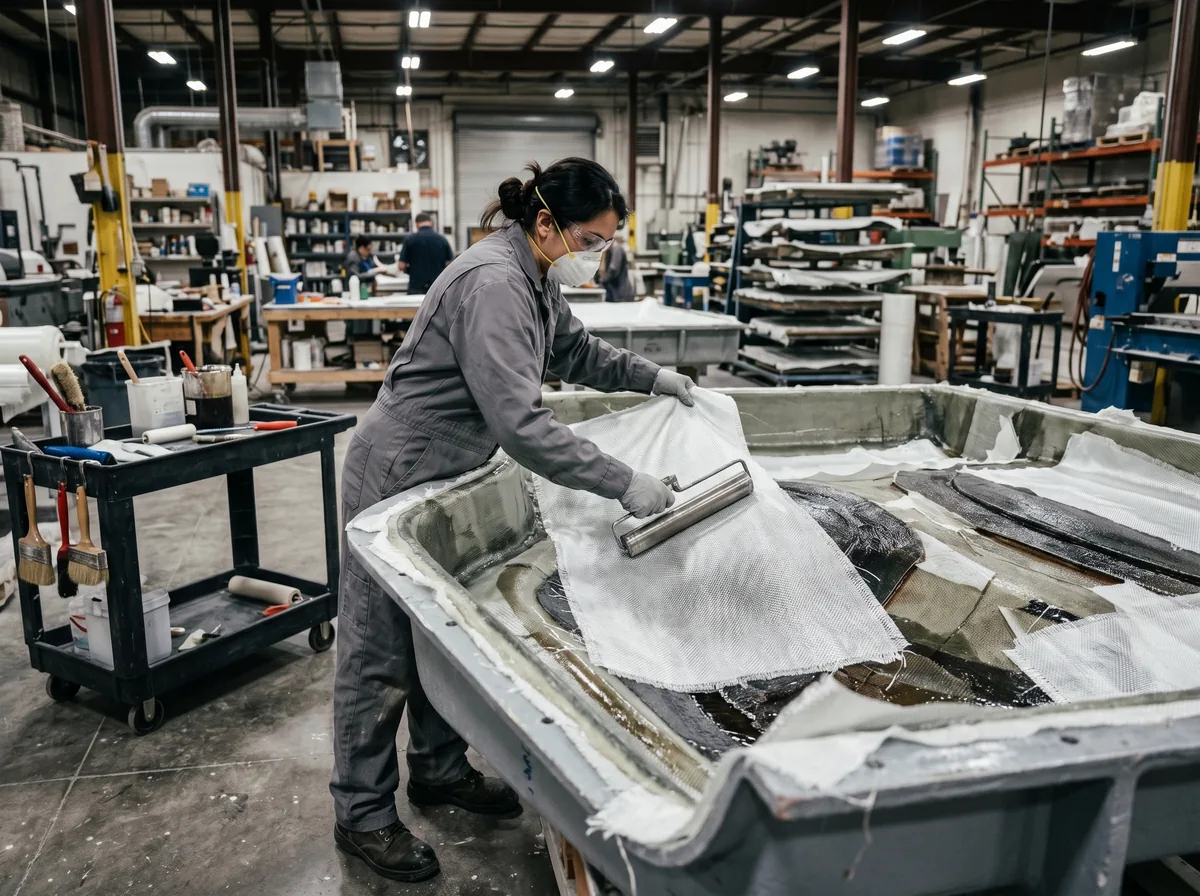

These molds are typically built with tooling gel coat over a hand-laminated plug, using polyester or vinyl ester resin systems and conventional woven or chopped strand mat reinforcement. Surface finish is typically Class B or C. Lead time runs 3 to 6 weeks from plug approval.

Mid-complexity molds: $20,000 to $80,000

Mid-complexity tooling covers the majority of industrial fiberglass projects: parts with compound curves, moderate geometric complexity, parting line decisions that require planning, and surface finish requirements of Class A or B. This tier also includes split molds, two-piece molds with registration features, and molds requiring gel coat uniformity for aesthetically visible parts.

For closed-mold processes like RTM or LRTM, even modest part complexity pushes tooling into this range because both mold halves must maintain consistent resin flow paths and sealing surfaces. The additional engineering and machining for flow channels and seal grooves adds $8,000 to $25,000 to the tooling cost versus an equivalent open-mold tool.

Large and complex molds: $80,000 to $250,000+

High-complexity tooling at this price point typically involves: large surface area with tight dimensional tolerances across the full tool, multi-cavity configurations, undercuts that require loose pieces or side-pull mechanisms, Class A finish requirements with integrated gel coat application features, or hybrid tooling that incorporates steel inserts for wear surfaces or registration pins.

Aerospace-grade composite tooling and autoclave-cure molds occupy the upper end of this range and beyond. These tools are built from carbon fiber reinforced tooling laminates with controlled thermal expansion coefficients, and they require significantly more engineering input, material cost, and post-fabrication verification than conventional fiberglass tooling.

The factors that drive tooling cost

Tooling quotes reflect a fabricator’s estimate of hours and materials. Understanding what drives each helps buyers have better conversations about cost and scope.

• Geometry complexity. Compound curves, undercuts, tight internal radii, and parting line geometry that requires engineering all add hours directly.
• Surface finish class. Class A surfaces require more tooling coat preparation, more intermediate inspection steps, and more finishing labor than Class B or C.
• Mold life expectation. A tool intended for 2,000 production pulls requires heavier laminate schedules, more reinforcement in high-stress zones, and typically a stiffening structure. All of these add material and labor.
• Process type. Open mold tooling is simpler and cheaper than matched closed-mold tooling for RTM or compression molding. Closed-mold tools require engineering for flow paths, sealing surfaces, and injection port placement.
• Resin system. Polyester tooling resins are cheaper than vinyl ester, which is cheaper than epoxy. High-temperature tooling using Bismaleimide or cyanate ester resins are significantly more expensive.
• Plug quality and source. If the fabricator has to build the plug from your drawings, that cost is typically separate from the mold cost and ranges from $2,000 to $30,000+ depending on complexity.
• Tolerances and inspection requirements. Tight dimensional tolerances require additional verification steps and sometimes CMM inspection, which adds cost but is not always included in base quotes.

How to build a realistic tooling budget

The most common tooling budget mistake is working backwards from an acceptable number rather than forwards from actual project requirements. A realistic tooling budget has four components: plug cost, mold fabrication, first article inspection, and a contingency reserve.

According to Moldmaking Technology, a 10 to 15 percent contingency reserve on tooling budgets is standard practice across the composites industry. Design changes during the mold build, first article dimensional deviations requiring tool modification, and surface finish refinements are common enough that the contingency is almost always used.

• Plug cost: $2,000 to $30,000 depending on complexity and whether you supply a master or the fabricator builds from CAD.
• Mold fabrication: Use the ranges in this guide as a starting point, adjusted for your specific process and finish requirements.
• First article inspection: Budget $500 to $3,000 depending on part complexity and whether CMM verification is required.
• Contingency: 10 to 15 percent of total tooling cost held for modifications and refinements.

The cost vs. quality tradeoff in fiberglass tooling

Tooling cost is not a number to minimize. It is a number to right-size for the production requirement. A mold that costs $15,000 less but degrades after 200 pulls when you needed 800 has not saved money. It has deferred a full mold replacement cost plus the downtime cost of taking production offline to rebuild tooling.

The most useful framing: what is the part cost, what is the production volume, and what is the total cost of a mold failure partway through the run? For most industrial applications, a mold that performs reliably through 150 percent of the planned production run is worth the premium over one that barely makes it to the target. BLG Fiberglass discusses expected mold life and construction standard in every tooling consultation.
